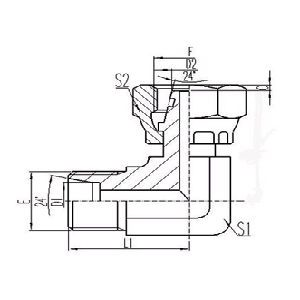

代 號(hào)

螺紋 THREAD

管子外徑 TUBE O.D.

尺寸 DIMENSIONS

PART NO.

E

F

D1

D2

L1

C

S1

S2

2C9-12

M12X1.5

M12X1.5

6

6

20.8

1

11

17

2C9-14

M14X1.5

M14X1.5

8

8

25.3

2

14

19

2C9-16

M16X1.5

M16X1.5

10

10

27.2

2

16

22

2C9-18

M18X1.5

M18X1.5

12

12

28.5

2.5

19

24

2C9-22

M22X1.5

M22X1.5

15

15

30.5

2.5

22

27

2C9-26

M26X1.5

M26X1.5

18

18

35.5

2.5

27

32

2C9-30

M30X2

M30X2

22

22

41

4

30

36

2C9-36

M36X2

M36X2

28

28

44.7

4

36

41

2C9-45

M45X2

M45X2

35

35

52.5

5

48

55

2C9-52

M52X2

M52X2

42

42

58.5

5.5

55

60
